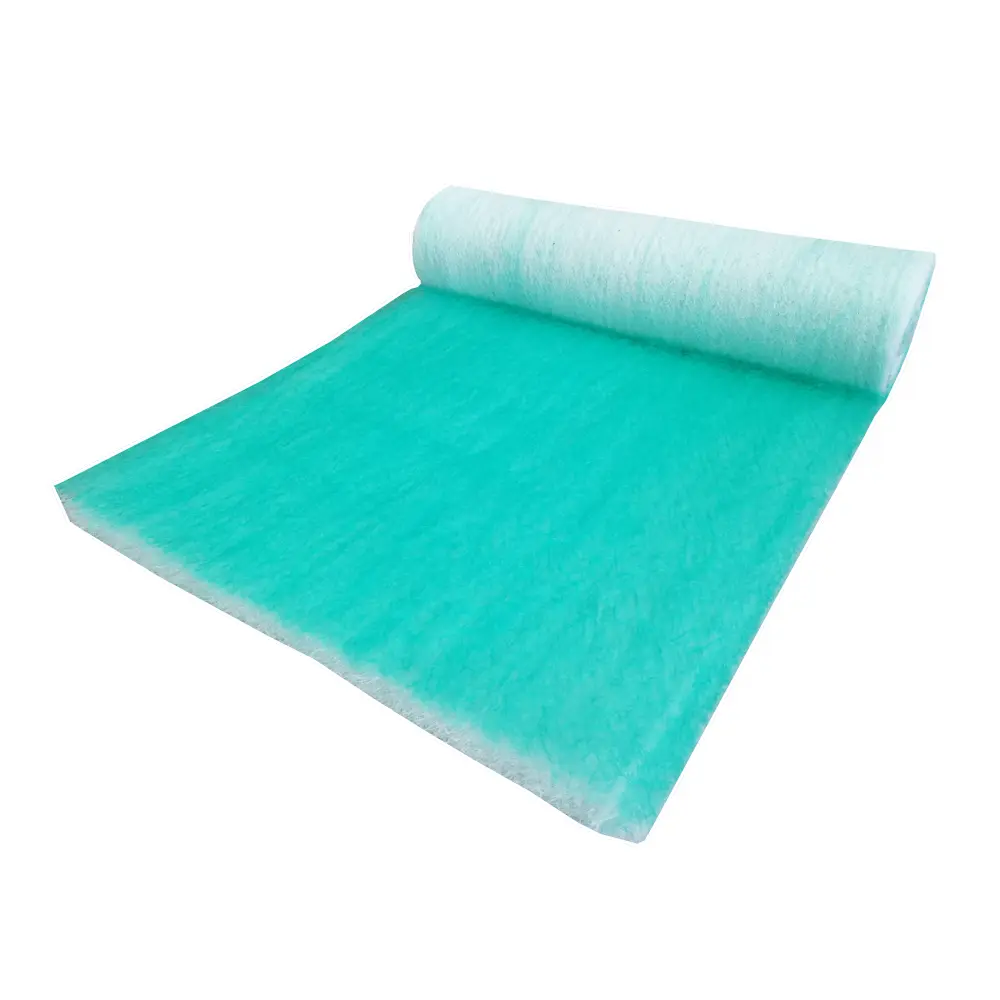

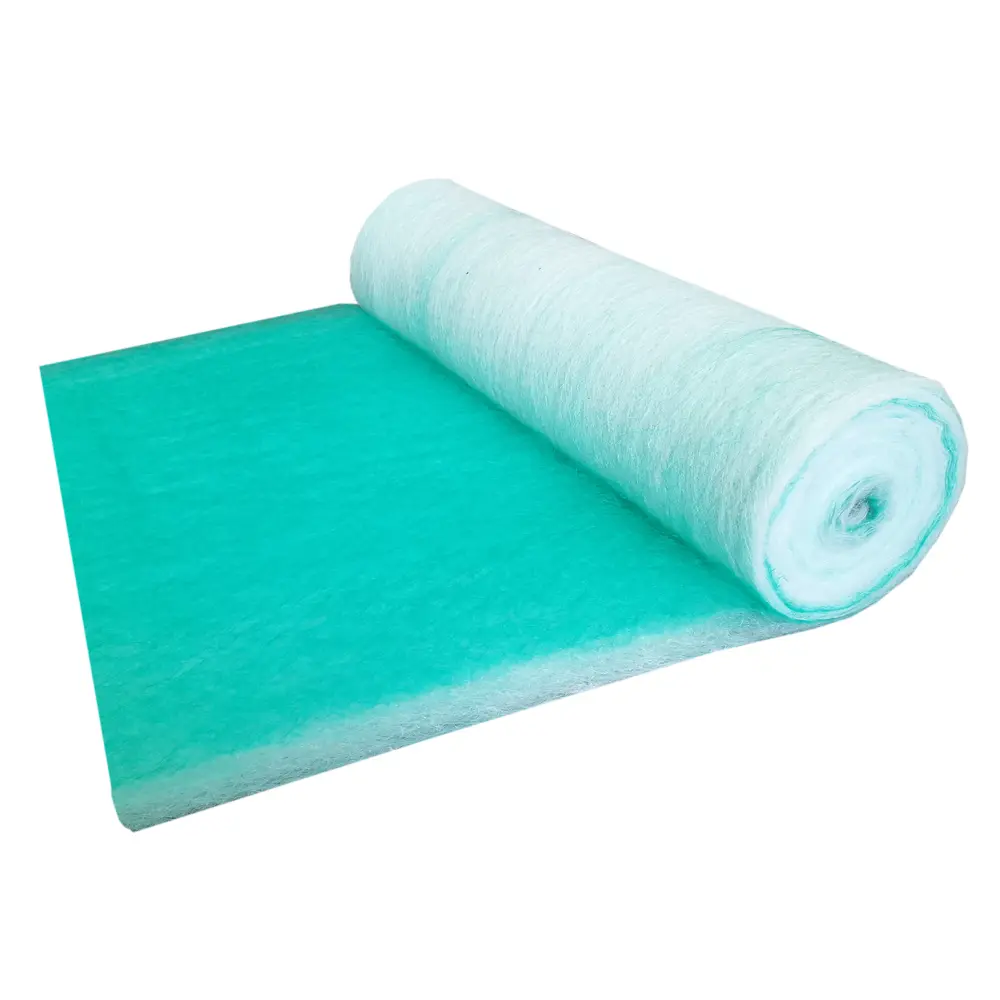

CE Certification G2 G3 G4 pre fiberglass media paint stop floor air filter roll spray booth filter Supplier, Exporter

Material

high-quality fluffy glass fiber material

Weight(g/m2

300~400

Thickness(mm)

30、50、75、100 (can be customized)

Regular width(m)

0.5~2

Roll length(m)

20 (can be customized)

Efficiency

G2、G3、G4

Working temperature

-10~70℃

Working humidity

≤80%RH

Product Description

Product Properties
Filter media: High-quality fluffy glass fiber material
Efficiency: G2, G3, G4
  • Fluffy glass fiber with incremental structure, high dust holding capacity, long service life
  • Low initial resistance and low cost
  • Corrosion resistance, acid and alkali resistance, high temperature resistance
  • Can be cut into required sizes, or used in whole rolls
Technical Specifications
Material high-quality fluffy glass fiber material
Weight(g/m²) 300~400
Thickness(mm) 30、50、75、100 (can be customized)
Regular width(m) 0.5~2
Roll length(m) 20 (can be customized)
Efficiency G2、G3、G4
Working temperature -10~70℃
Working humidity ≤80%RH
Advantages
One-stop Service
One-stop Service & solution for Fresh Air.
Professional R&D
Engaged in air filtration research and development, production and sales for more than 15 years.
Factory Pricing
Factory price for air filter materials and air filter products.
Flexible Customization
OEM & ODM support, fast delivery.
  • Compact and durable: Density increases step by step, high dust holding capacity, long service life.
  • Low resistance and temperature resistance: Good elasticity, low initial resistance, sustainable resistance to 100°C.
  • High filtration efficiency: Excellent capture efficiency for paint mist.
Main Products Range

Our comprehensive product line includes industrial pre-filters, pocket/bag air filters, mini/deep pleated HEPA filters, V-bank filters, and chemical air filters. We also supply household air purifier replacement HEPA filters, carbon air filters, combination air filters, cabin air filters, cleaner air filters, humidifier air filters, as well as high-quality air filter materials such as pocket filter roll media, paint stop fiberglass media, ceiling filter media, coarse filter media, melt-blown fabric, and air filter paper.

Application Fields

Ideally suited for paint mist emission filtration or industrial oil mist emission filtration of coating systems. This media can also be widely used for general ventilation pre-filtration applications.

Product Description

description2

Frequently Asked Questions
QWhat is the main material of this filter media?
This filter media is made from high-quality fluffy glass fiber material, which features an incremental structure designed for high dust holding capacity and a long service life.
QWhat filtration efficiency ratings are available?
The glass fiber filter media is available in standard G2, G3, and G4 efficiency ratings.
QCan the roll size and thickness be customized?
Yes. While the standard thicknesses are 30mm, 50mm, 75mm, and 100mm, and the regular roll length is 20m, they can be fully customized and cut to your required sizes.
QWhat are the temperature and environmental limits?
It has a standard working temperature range of -10 to 70℃, a working humidity limit of ≤80%RH, and can sustainably resist temperatures up to 100°C. It also features corrosion, acid, and alkali resistance.
QWhere is this product typically applied?
It is primarily used for paint mist and industrial oil mist emission filtration in coating systems, as well as for general ventilation pre-filtration.
QDo you support OEM or ODM requirements?
Yes, full OEM & ODM support is available along with fast delivery options to meet customized specifications.
