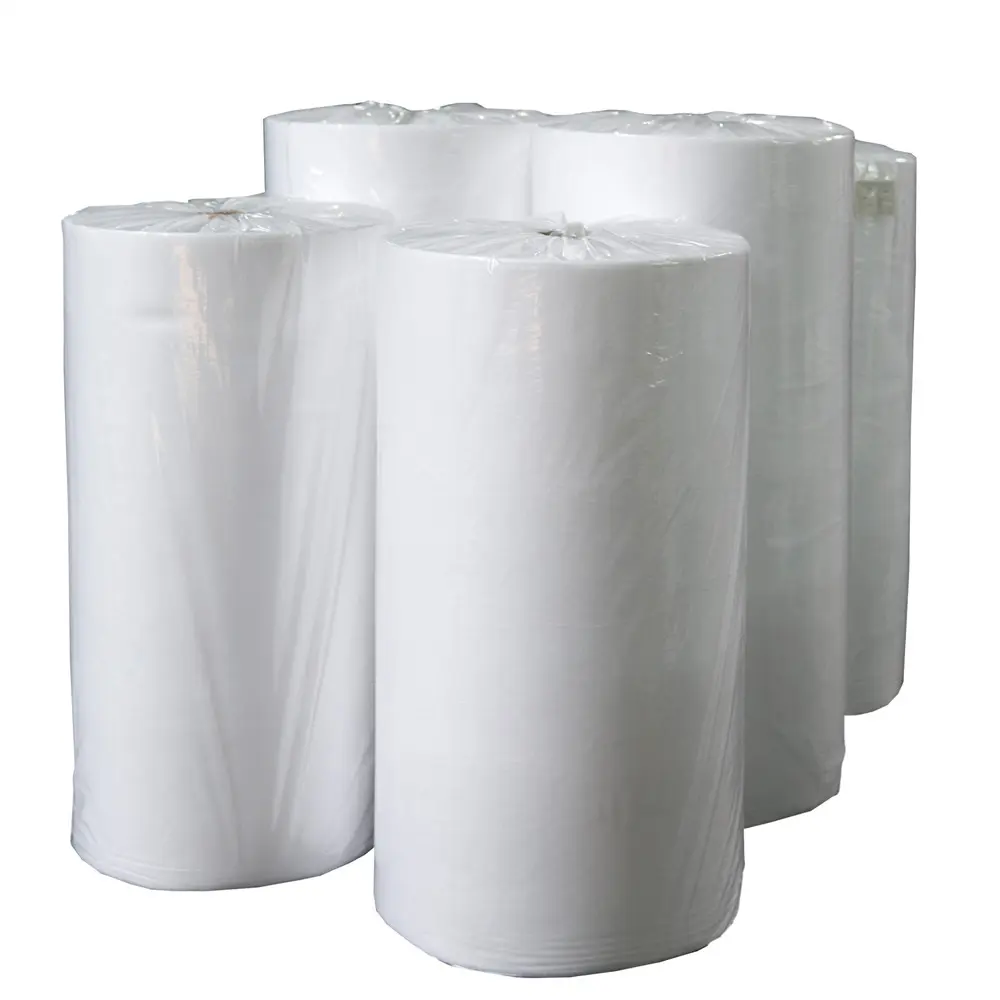

Custom High efficiency low resistance meltbown MB fabric material for air filter media product Manufacturers, Company

Grade

H10

H11

H12

H13

H14

Material

Polypropylene fiber

Efficiency

≥85%

≥95%

≥99.5%

≥99.95%

≥99.995%

Pressure drop(Pa)

≤8

≤10

≤18

≤30

≤45

Weight(g/m2

25±2

25±2

30±2

30±2

50±2

Thickness(mm)

0.21±0.02

Roll size

W0.68*500 m(can be customized)

Product Description

Product Properties
  • Filter media -- 100% Polypropylene material
  • Efficiency -- MPPS efficiency 85%~99.995%
  • Large specific surface area, large filtration area, porous structure
  • High filtration efficiency, low initial resistance
  • High dust holding capacity, long service life
Grade H10 H11 H12 H13 H14
Material Polypropylene fiber
Efficiency ≥85% ≥95% ≥99.5% ≥99.95% ≥99.995%
Pressure drop (Pa) ≤8 ≤10 ≤18 ≤30 ≤45
Weight (g/m²) 25±2 25±2 30±2 30±2 50±2
Thickness (mm) 0.21±0.02
Roll size W0.68 * 500 m (can be customized)
Advantages
  • One-stop Service & solution for Fresh Air
  • Engaged in air filtration research and development, production and sales for more than 15 years.
  • Factory price for air filter materials and air filter products.
  • OEM & ODM support, fast delivery.
  • High efficiency and low resistance.
  • High dust holding capacity - super capillary structure increases the number of fibers per unit area, long service life.
  • Safety and environmental protection.
Main Products

Our products include industrial pre-filter, pocket/bag air filter, mini/deep pleated HEPA filter, V-bank filter, chemical air filter; household air purifier replacement HEPA, carbon air filter and combination air filter, cabin air filter, cleaner air filter, humidifier air filter as well as air filter materials such as pocket filter roll media, paint stop fiberglass media, ceiling filter media, coarse filter media, melt-blown fabric, air filter paper, etc.

Application

Air, liquid filter materials, isolation materials, absorption materials, mask materials, thermal materials, oil-absorbing materials and wipes, etc.

Frequently Asked Questions
What material is used for the filter media?
Our filter media is made of 100% Polypropylene material, which provides a large specific surface area and a porous structure for optimal filtration performance.
What efficiency grades do you offer?
We support efficiency grades from H10 to H14, with MPPS efficiency levels ranging from ≥85% up to ≥99.995%.
Can the roll size of the filter media be customized?
Yes. While our standard roll size is W0.68 * 500 m, it can be fully customized based on your specific application and sizing requirements.
What are the main advantages of your air filtration materials?
Our materials offer low initial resistance, high filtration efficiency, a high dust holding capacity, safe and environmentally friendly configurations, and a long service life.
Do you support OEM and ODM orders?
Yes, we offer comprehensive OEM and ODM support with factory-direct pricing for both materials and finished products, backed by fast delivery services.
What other applications are these filter materials used for?
Beyond air filtration, they are widely used in liquid filtration, isolation, absorption, mask production, thermal insulation, oil absorption, and wipes.
